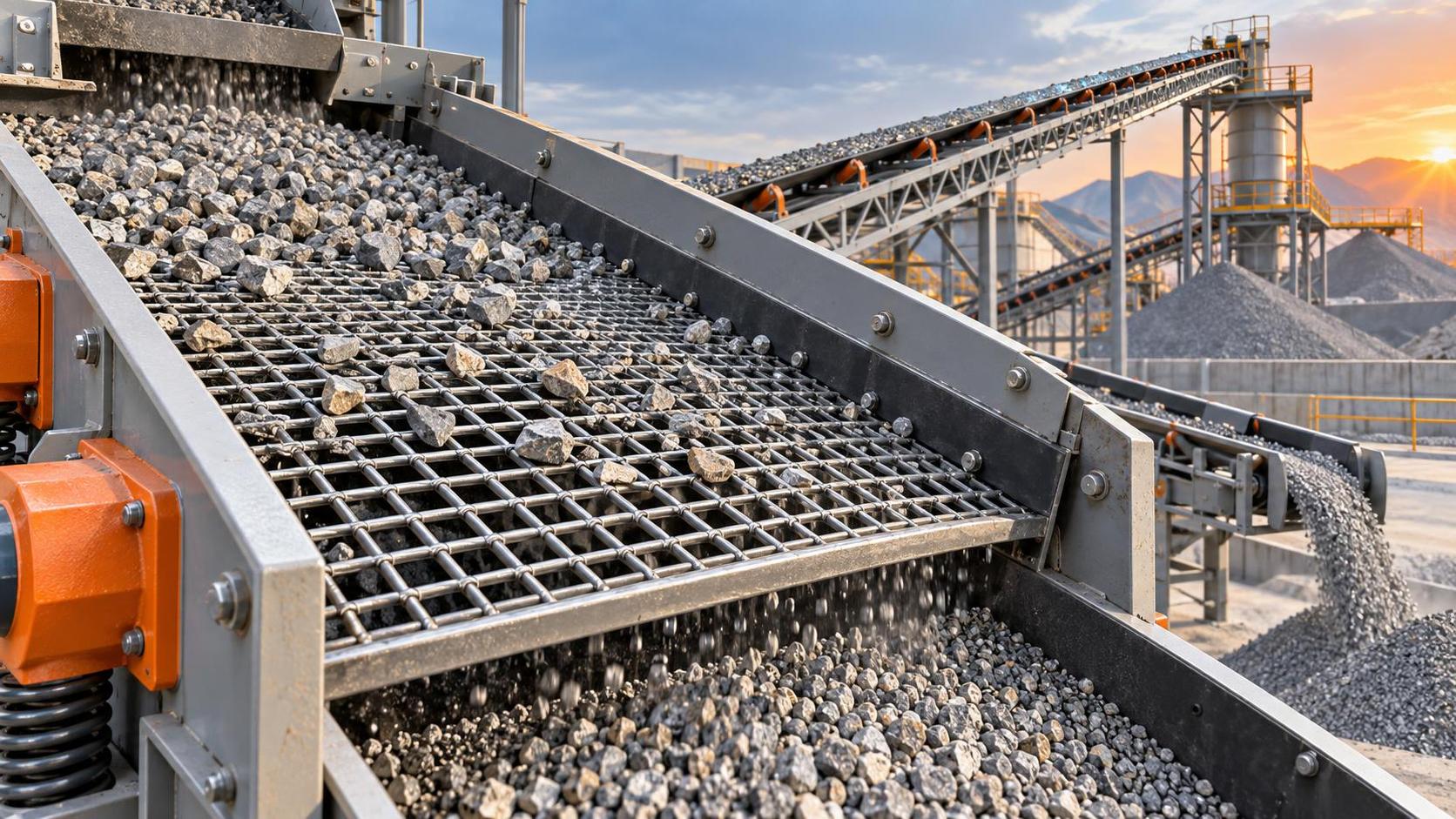

Accurate aggregate grading begins with selecting the right Wire mesh opening size for each screening stage. A screen deck does more than divide material into “pass” and “retain” fractions: it determines whether the final product can consistently meet the particle-size envelope specified for concrete, asphalt, drainage layers, rail ballast, or other applications. When the aperture is poorly matched to the required cut point, quality problems usually appear downstream—as excess oversize, unstable fines content, poor stockpile consistency, or unexpected loading on crushers and conveyors.

For quality and safety teams, the task is not simply to order a mesh labeled with a nominal opening. The practical question is whether that opening, under operating conditions, can produce a repeatable grading result while remaining secure, serviceable, and compatible with the screening machine. Wire diameter, open area, feed characteristics, deck position, panel tension, and wear all influence what the screen actually does.

Start with the required grading, not the existing screen inventory

The starting point should be the approved product specification and the laboratory method used to verify it. Project documents may reference a national standard, an owner specification, or a recognized test method such as ASTM C136/C136M for sieve analysis of fine and coarse aggregates. Production screens are not laboratory test sieves, but the size boundaries used in production should be selected with a clear understanding of how finished material will be sampled and tested.

A common mistake is to assume that a screen aperture equal to the desired nominal product size will deliver a perfectly sharp separation. In real screening, particles near the opening size have a probability of passing rather than a guaranteed path through the mesh. Flat, elongated, damp, or clay-coated particles behave differently from clean, cubical stone. If a product has a tight upper-size limit, the production cut may need to be confirmed by trial data and routine gradation results rather than selected from a size chart alone.

The material path also matters. A top deck is generally intended to remove larger particles and protect lower decks. Intermediate decks create saleable fractions, while lower decks often handle smaller aggregate or sand recovery. Each opening should therefore be considered as part of a deck sequence. A single incorrectly chosen opening can overload the next stage and make the whole plant appear inefficient.

Opening size and wire diameter must be evaluated together

The clear opening is the free space between adjacent wires. It governs the theoretical particle size that can pass. Wire diameter does not change that stated aperture, but it changes the amount of open area available for material to pass through. For square woven mesh, open area can be estimated as:

Open area (%) = [opening ÷ (opening + wire diameter)]² × 100

This relationship explains why two panels with the same opening may screen very differently. A heavier wire can offer better resistance to abrasion and impact, yet it reduces open area and may reduce capacity. A lighter wire provides more passing area but can wear quickly under hard, sharp, or high-impact feed. Neither choice is automatically correct. The selection should reflect the feed size, mineral hardness, moisture, expected tonnage, vibration conditions, and the maintenance window available at the site.

For example, a coarse scalping deck receiving large blasted rock needs a different balance from a finishing deck handling clean, screened aggregate. At the fine end, blinding and pegging may become more influential than abrasion. Polyurethane or other modular media can be considered where wear life, noise control, or anti-blinding geometry is needed, while steel Wire mesh remains a practical option where high open area and accurate woven apertures are the priority.

Do not confuse aperture accuracy with grading accuracy

A correctly manufactured mesh panel is necessary, but it is only one part of grading control. The effective separation achieved by a vibrating screen depends on how often particles contact the screening surface and whether they have a realistic opportunity to orient and pass. Excess feed depth, uneven distribution across the deck, insufficient stroke, incorrect screen angle, and overloaded discharge ends can all allow undersize material to travel over the mesh.

Conversely, an apparently “coarse” product may become contaminated with near-size particles when the screen is operating at a higher-than-expected efficiency. This is not always a mesh defect. It may reflect changes in crusher settings, recirculating load, feed moisture, or the proportion of flaky particles in the quarry feed. Quality control should compare sieve-analysis trends with operating changes, rather than replacing panels after every grading deviation.

A useful inspection routine checks the opening at several positions across the deck, particularly in the feed zone and at high-wear areas. Abrasion can enlarge apertures gradually, and broken or displaced wires create local bypass paths that are much larger than the nominal opening. A panel may still look serviceable from a distance while allowing oversize contamination into a critical product fraction.

Match mesh type to the screening risk

The best screen surface is often determined by the failure mode that causes the greatest operational risk. Woven square mesh is widely used for accurate classification because its openings are regular and its open area is favorable. However, it can be vulnerable to impact where large feed lands directly on the deck. Crimp pattern, wire grade, edge preparation, and hook dimensions must suit the machine and material. A panel that is correctly sized but improperly tensioned can move, fatigue, or fail prematurely.

Slotted or self-cleaning screen media may help when elongated particles, moisture, and sticky fines lead to pegging. These options can change the separation behavior, so they should not be substituted without checking product test results. The shape and orientation of an opening can affect which particles pass; an equivalent nominal dimension does not always mean equivalent grading performance.

Fine aggregate and sand-washing circuits deserve particular care. High fines loads and water can make the distinction between recovery and classification less straightforward. In these duties, a banana screen configuration may be useful because its changing deck inclination supports rapid material stratification at the feed end while retaining screening area further along the deck. Equipment such as the FEIFAN High Recovery Rate Banana Vibrating Screen for Fine Particle Aggregate and Sand Washing Processes Vibrating Screen should be assessed as a complete system: feed rate, slurry condition, chosen media, vibration settings, and downstream dewatering requirements all need to align.

Build inspection and safety checks into mesh selection

Screen media is a wear component, but its condition is also a safety matter. Loose hooks, damaged side tensioning, fractured wires, cracked modular panels, and accumulated material near the discharge can create hazards during operation and maintenance. A changeout plan should specify isolation procedures, lifting arrangements, access conditions, fastener checks, and the inspection points that determine whether a panel can remain in service.

Quality records should link panel installation dates, screen deck location, feed material, observed wear pattern, and grading results. This creates a more useful basis for decisions than relying only on calendar-based replacement. If the same deck repeatedly shows uneven wear or poor separation, the root cause may be feed distribution or machine condition rather than the Wire mesh specification.

For international projects, it is also sensible to confirm the measurement convention before ordering. Opening dimensions, wire diameter tolerances, panel dimensions, hook style, and material designation should be stated clearly in drawings or purchase documentation. Terms such as “10 mm mesh” can be misunderstood if they do not identify whether the dimension refers to clear opening, center spacing, or a separate sieve designation.

A practical route to a stable screen specification

Before finalizing screen media, collect the target gradation, feed-size distribution, material characteristics, moisture condition, screen model, deck dimensions, vibration data, and expected operating rate. Then verify the actual aperture and open-area requirement against the desired cut point and expected wear life. After installation, use representative sampling and sieve analysis to validate the result under normal production conditions.

This whole-line view is particularly valuable when screen media, crushers, feeders, conveyors, and washing equipment are supplied or reviewed together. Since 2009, the Feifan group in Binzhou, Shandong has combined screen media manufacturing through Binzhou Feifan Wire Mesh Co., Ltd. with crushing and screening equipment production through Shandong Feifan Mining Machinery Co., Ltd. Its engineering teams can evaluate how media selection interacts with machine configuration rather than treating a panel as an isolated spare part.

The correct opening size is ultimately the one that supports the required test grading consistently, at a manageable wear rate, without creating avoidable safety or process problems. That conclusion should come from the specification, the actual feed, and measured plant performance—not from nominal aperture alone.
