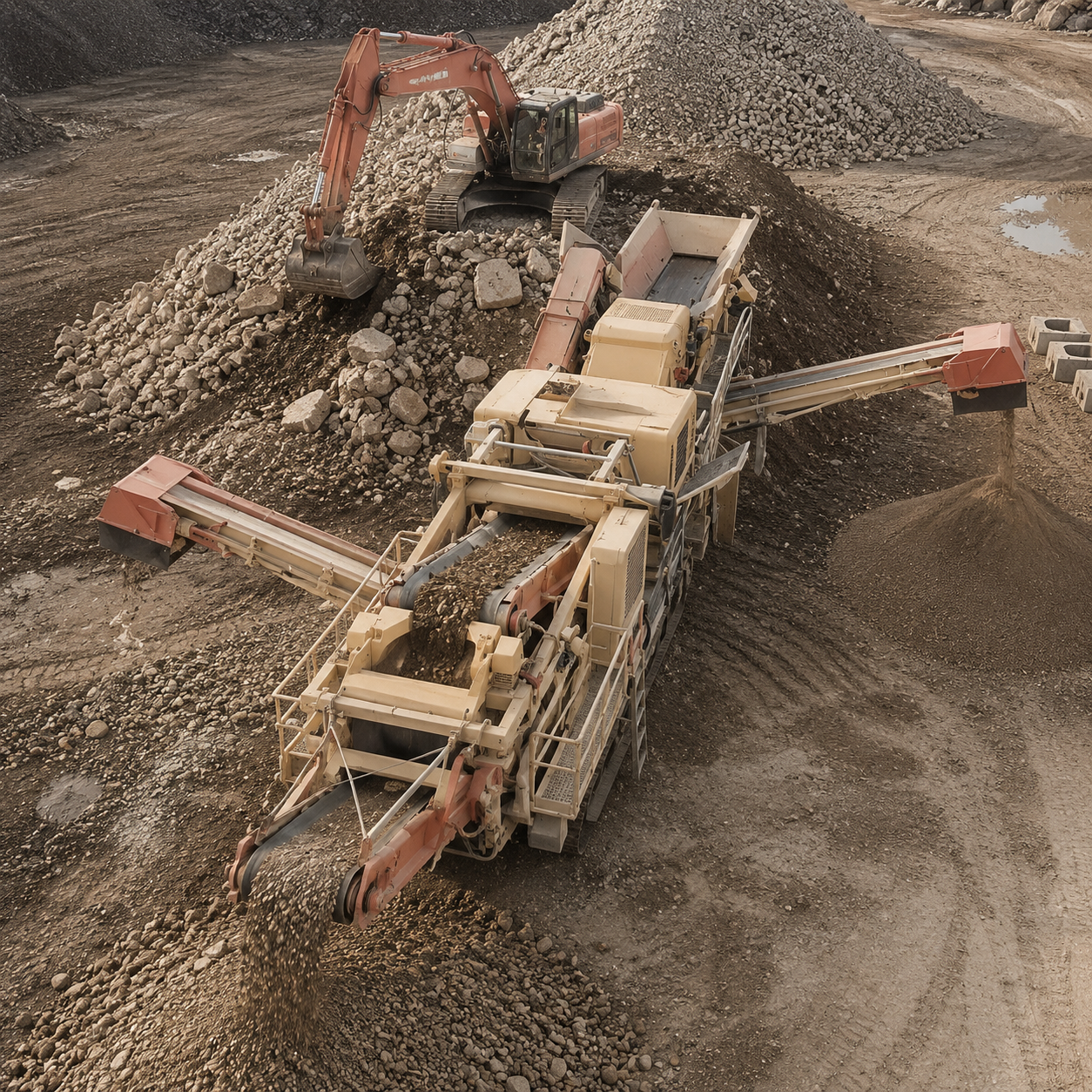

Durable Track Mounted Crushing Screening Equipment For Hard Rock Quarry Production Mobile Crushing Plant

Name: Durable Track Mounted Crushing Screening Equipment For Hard Rock Quarry Production Mobile Crushing Plant
SKU: 0

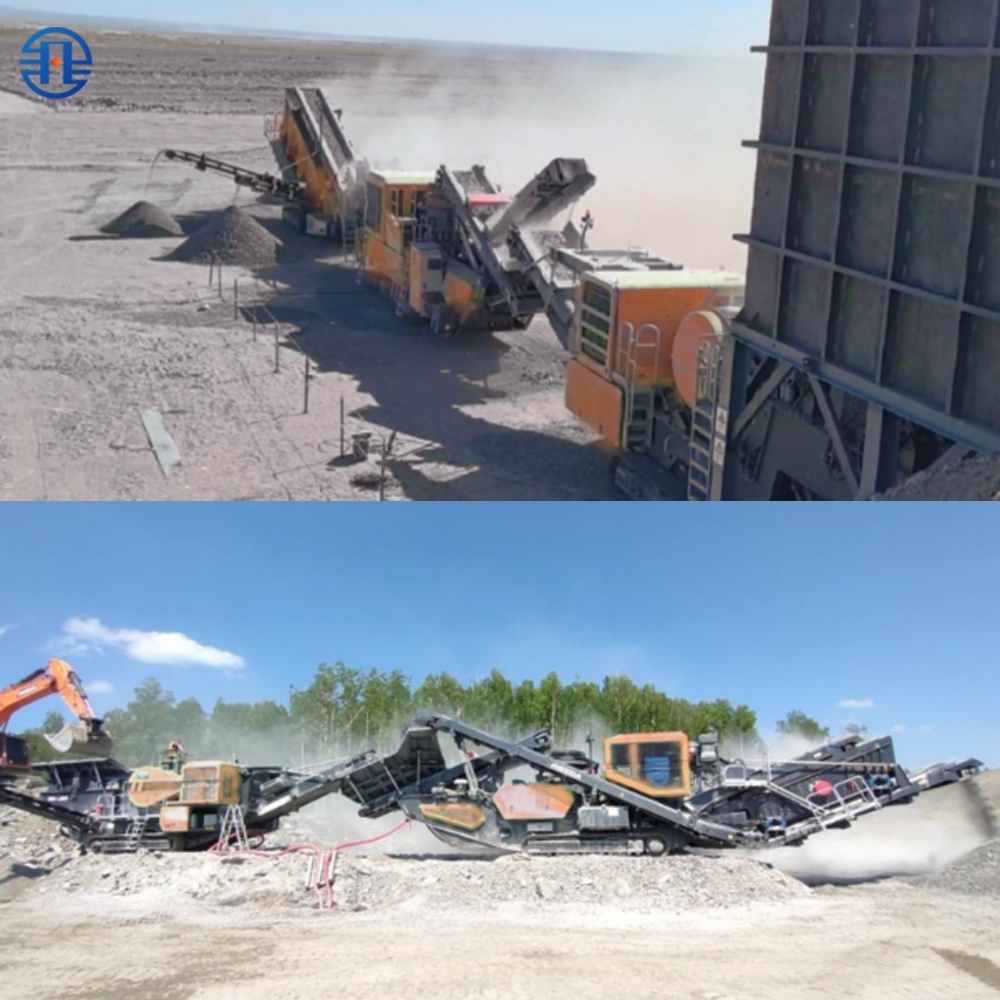

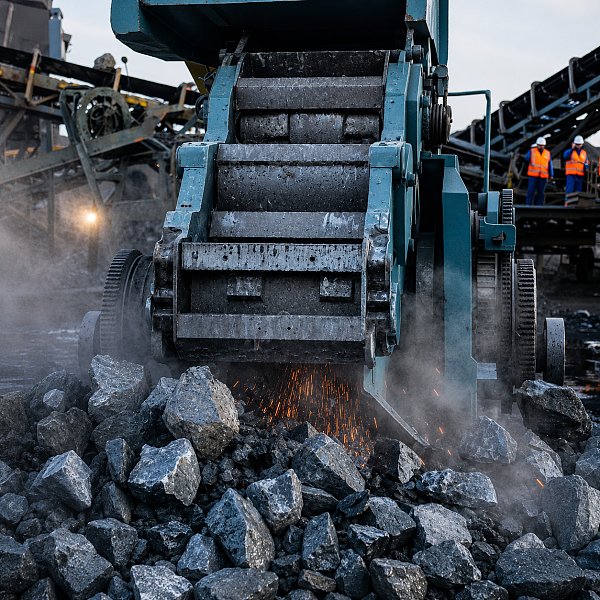

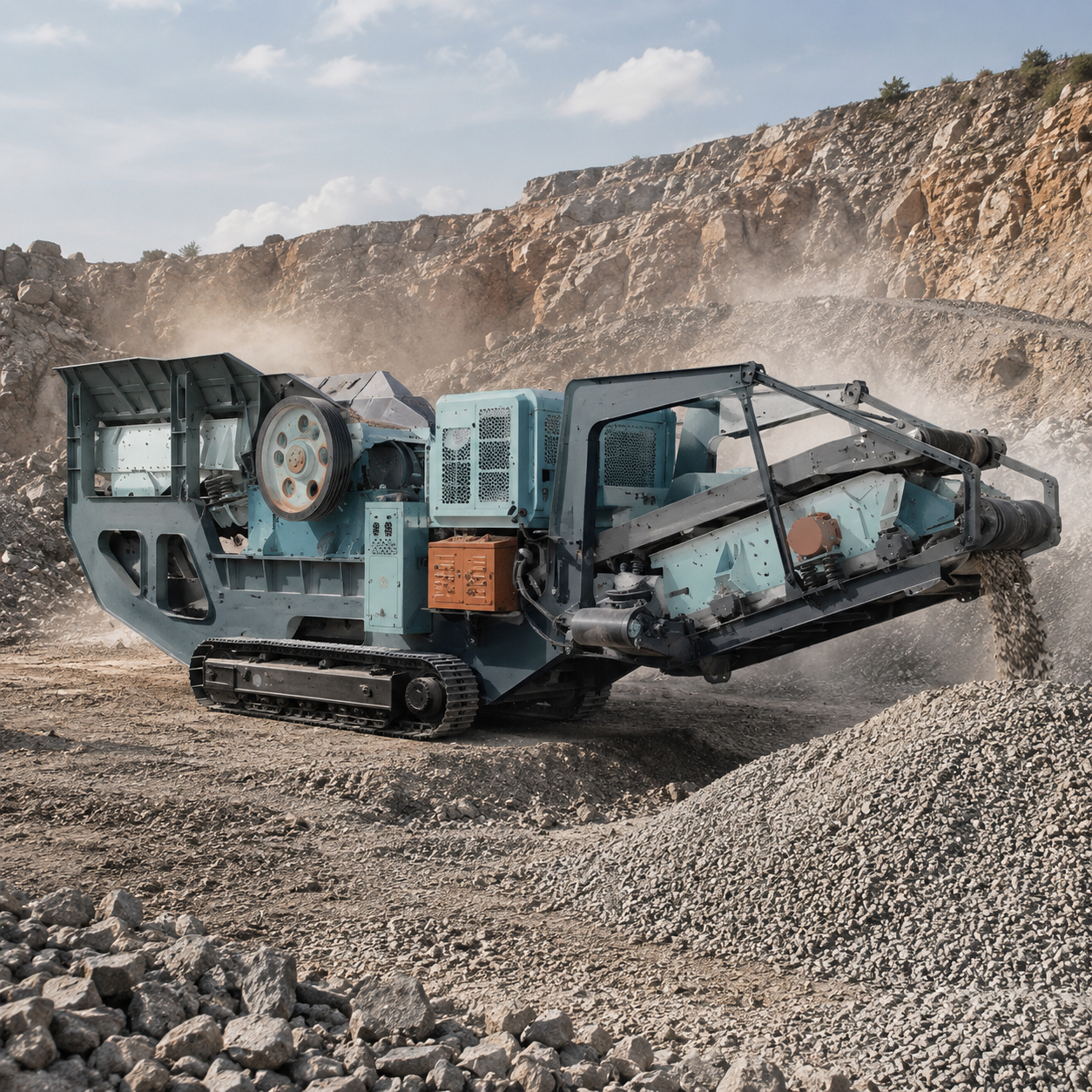

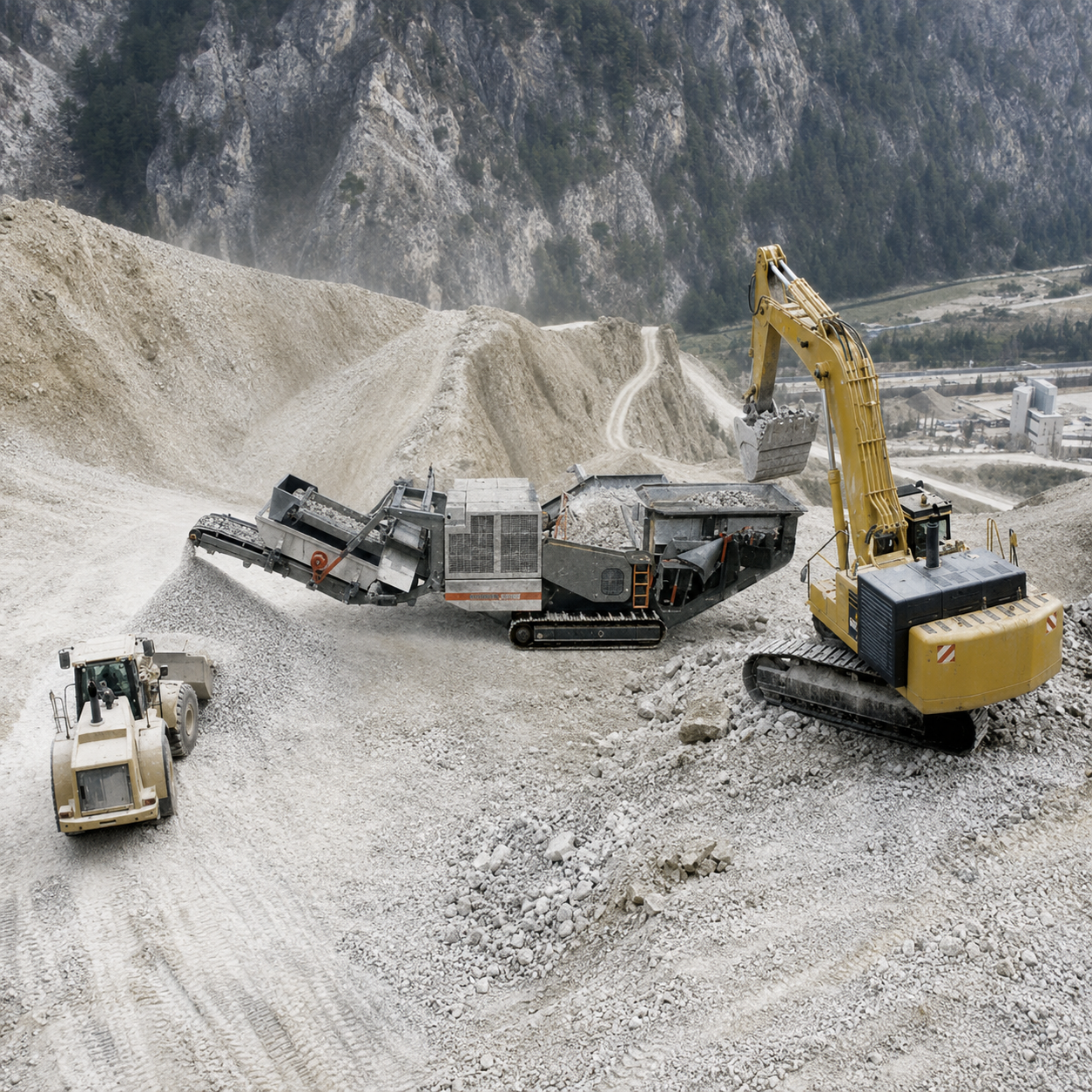

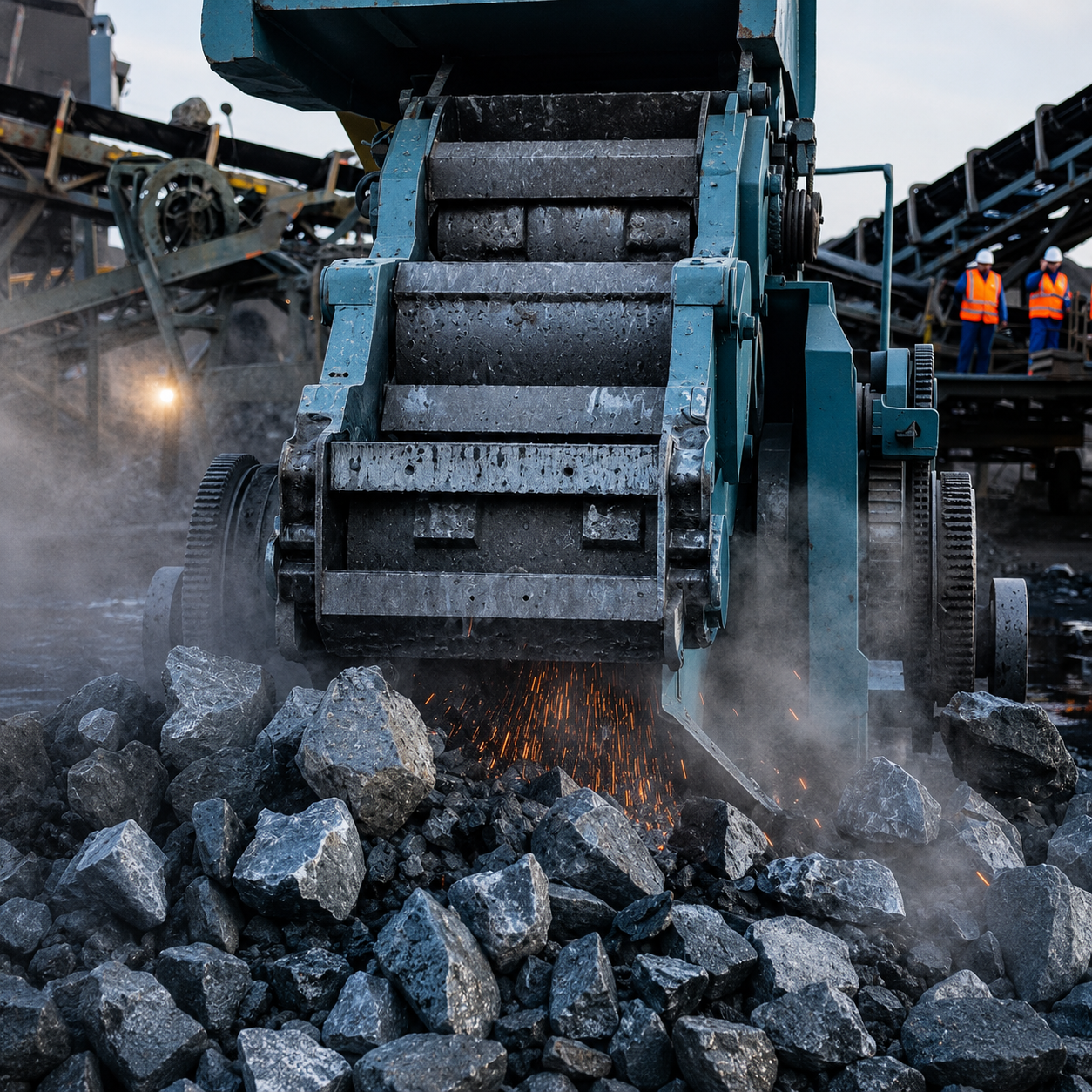

The tracked self-propelled mobile crushing plant is a highly efficient crushing equipment featuring an advanced self-driving system with stable performance and complete functions.
It can move flexibly under any terrain conditions and reach any required working position on site, offering strong adaptability.
It significantly reduces material handling operations and facilitates coordination with auxiliary equipment, improving overall working efficiency.
Equipped with a wireless remote control system, it can be easily loaded onto trailers and transported, ensuring more convenient and safer operation.
No installation or commissioning is required; the machine can be put into operation immediately upon arrival, greatly saving setup time.
It features a high crushing ratio and optimized structural design, meeting modern crushing process requirements.
It ensures uniform final product size and high output, making it ideal for mining, quarrying, and aggregate production applications.

Tel: +86 13176981712

WhatsApp: +86 13176981712

E-mail: info@tfindustry.com

Products Specifications

No.	Item	Name	NP1213	Comment
1	Surge hopper	Max. feed size (mm)	700
2		Feed height (mm)	4300
3		Capacity (m³)	6
4	Vibrating feeder	L*W (mm)	2700×1200
5		Power (kW)	3.7×2 (台)
6		Feed capacity (t/h)	500
7	Scalping screen	L*W (mm)	2050×1250
8		Power (kW)	3.2×2 (台)

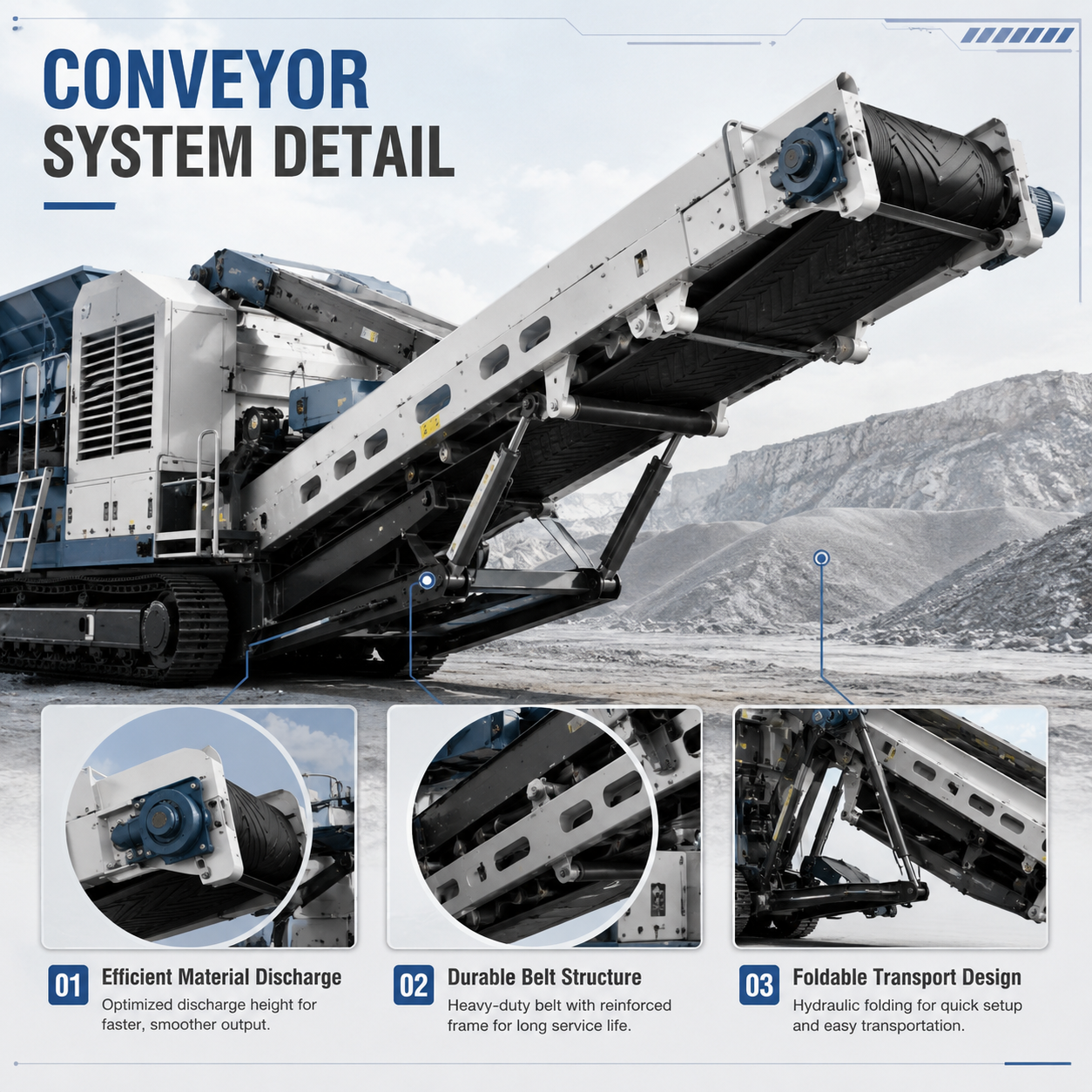

9	Tailing conveyor	L*W (mm)	5600×B500	Endless belt12.2m
10		Power (kW)	4
11		Stockpile height (mm)	2800
12	Belt conveyor	H (mm)	3700
13		L*W (mm)	12100×B1200	Endless belt25.55m
14		Power (kW)	15	If a reducer is used, 11 kW is required
15		Stockpile height (mm)	3400
16	Return screen	L*W (mm)	4000×1500	YZUC-65-6 (A 型用)YZUC-75-6 (B 型用)
17		Power (kW)	4.5kw×2
18	Transfer conveyor	L*W (mm)	2200×B500	Endless belt5.1m
19		Power (kW)	3
20	Return conveyor	L*W (mm)	9500×B500	Herringbone patterned conveyor belt
21		Power (kW)	5.5
22		Air blower	2.2
23	Magnetic separator	L*W (mm)	1870×B800
24		Power (kW)	4
25	A Finished product conveyor A	L*W (mm)	6400×B1000	Endless belt13.8m
26		Power (kW)	7.5
27		Stockpile height (mm)	3150
28	Mobile impact crusher	Engine Power (kW)	561	YUCHAI
29		Engine model	YC6TD840-D31
30		Generator	500	STAMFORD
31		Unit weight (t)	67	approximation
32		Crawler undercarriage	M65	SEIJIN
33		Processing capacity (t/h)	150-300
34		Transport dimensions	21×3.8×3.9
35		Working dimensions	20.5×7×6
36		Total operating power (kW)	314

Note:

The processing capacity of the crusher is correlated with stone hardness, feed particle size and discharge particle size.
Standard configuration: Manual control and wireless remote controller.
Optional configuration: Return material system, side conveyor folding device, iron remover, dust removal and spraying system.
In view of the continuous technical upgrading of our company, we reserve the right to modify technical parameters without prior notice. All parameters shall be subject to the actual product.

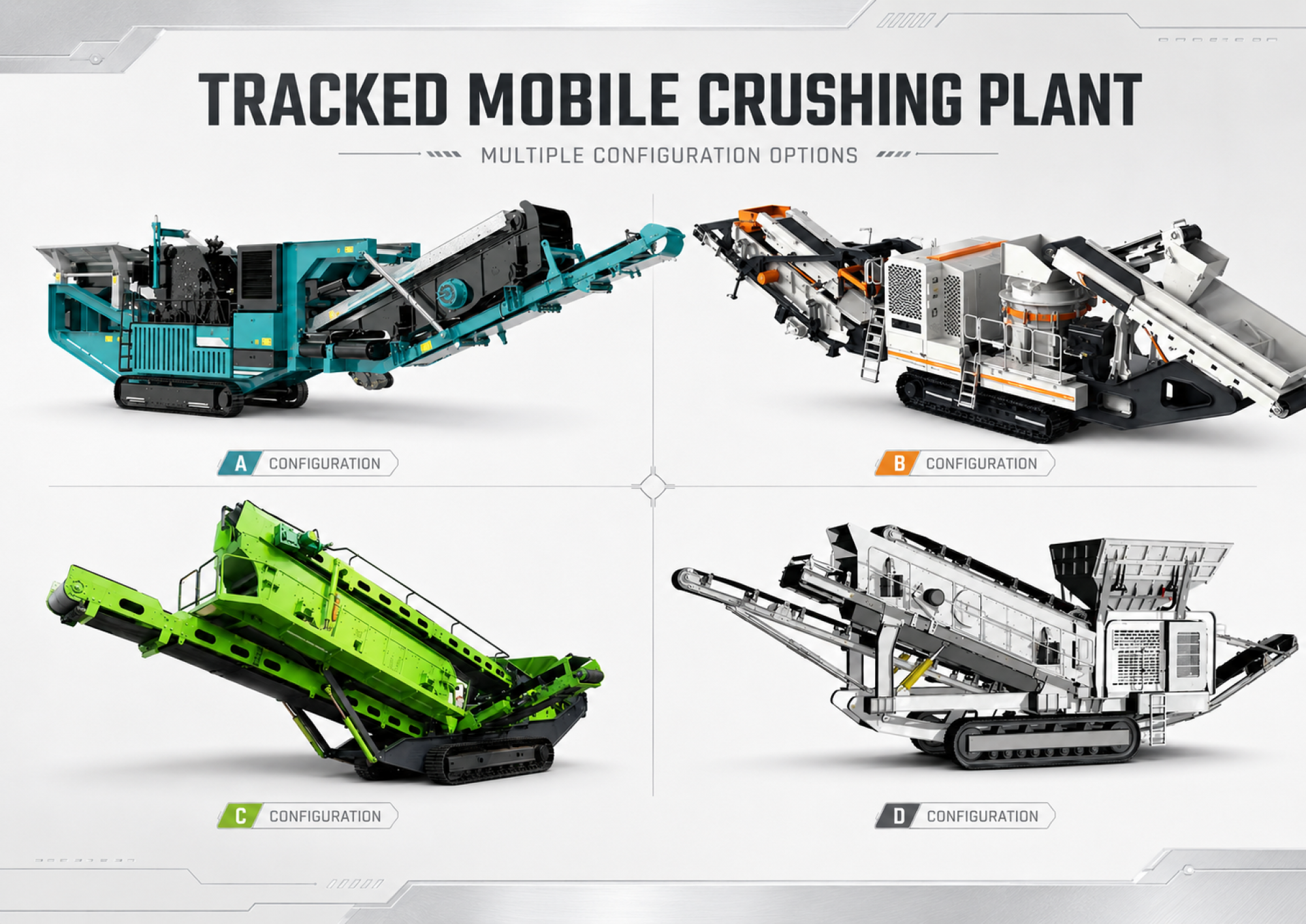

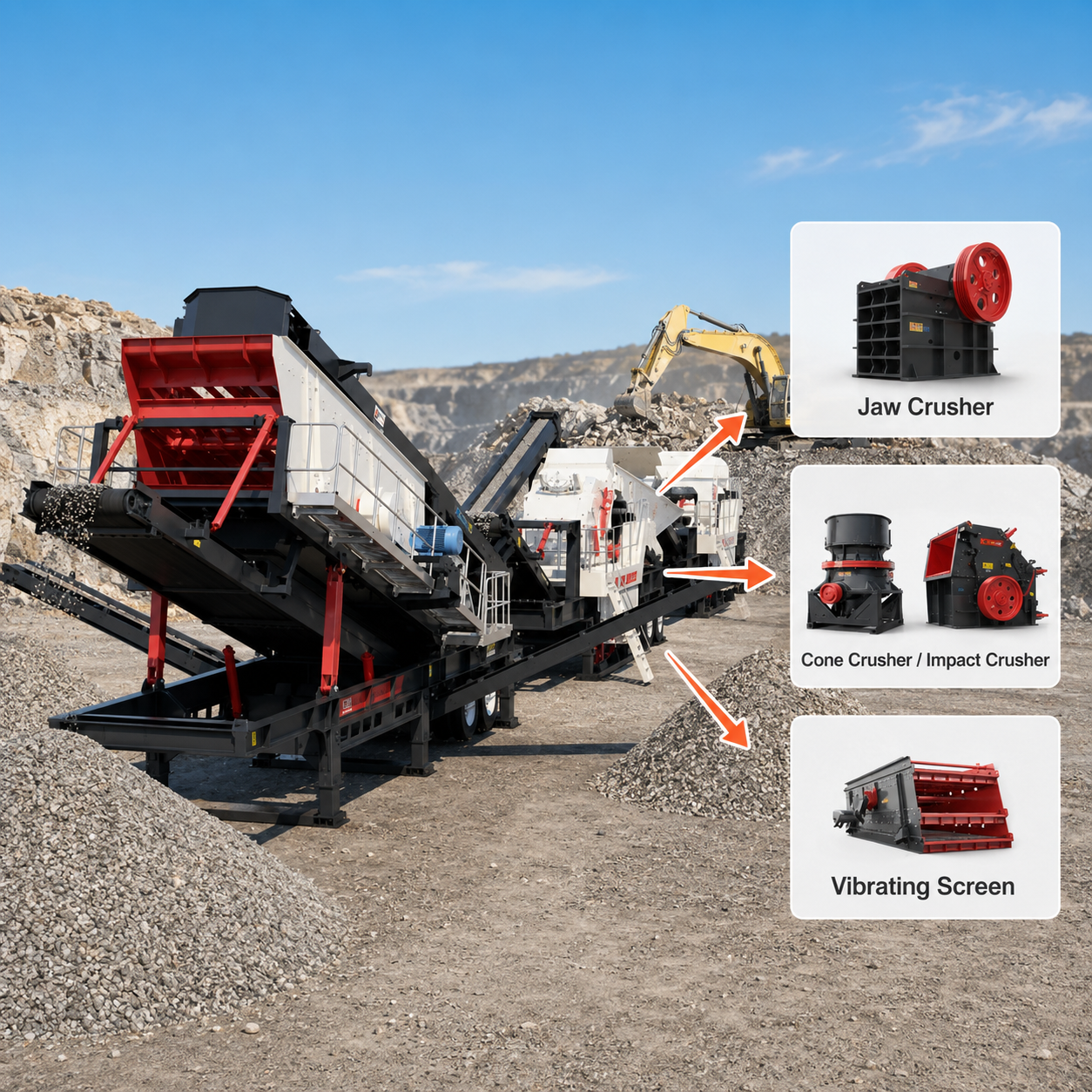

Optional Equipment Configuration

◆ Hammer Crusher

◆ Jaw Crusher

◆ Impact Crusher

◆ Cone Crusher

◆ Vibrating Screen / Screening Equipment

◆ Screening system matched with the above equipment / Supporting screening equipment for complete production line

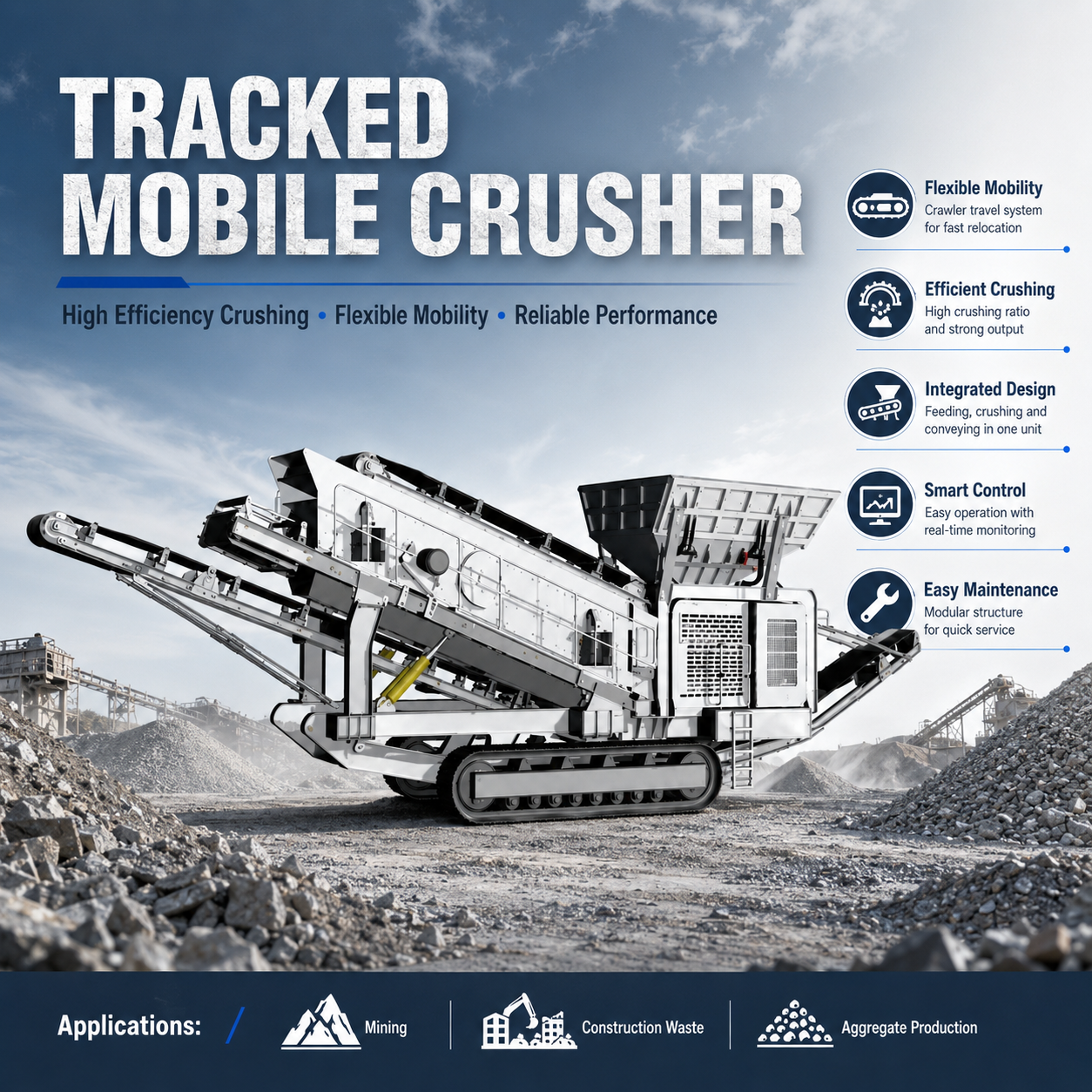

Key Features & Advantages

✦The chassis adopts a tracked, fully steel ship-shaped structure with high strength and low ground bearing pressure.

✦It offers excellent tracked mobility and flexibility, requiring no supporting legs or fixed foundation during operation.

✦Highly efficient and stable operation with no installation or commissioning required, allowing production within 30 minutes.

✦On-site material processing significantly reduces transportation costs of raw materials.

✦Integrates feeding, crushing, screening, and conveying into one complete system for continuous operation.

✦High crushing ratio with uniform finished products and excellent particle shape.

✦Integrated unit design ensures easy installation, time-saving setup, reliable performance, and convenient maintenance.

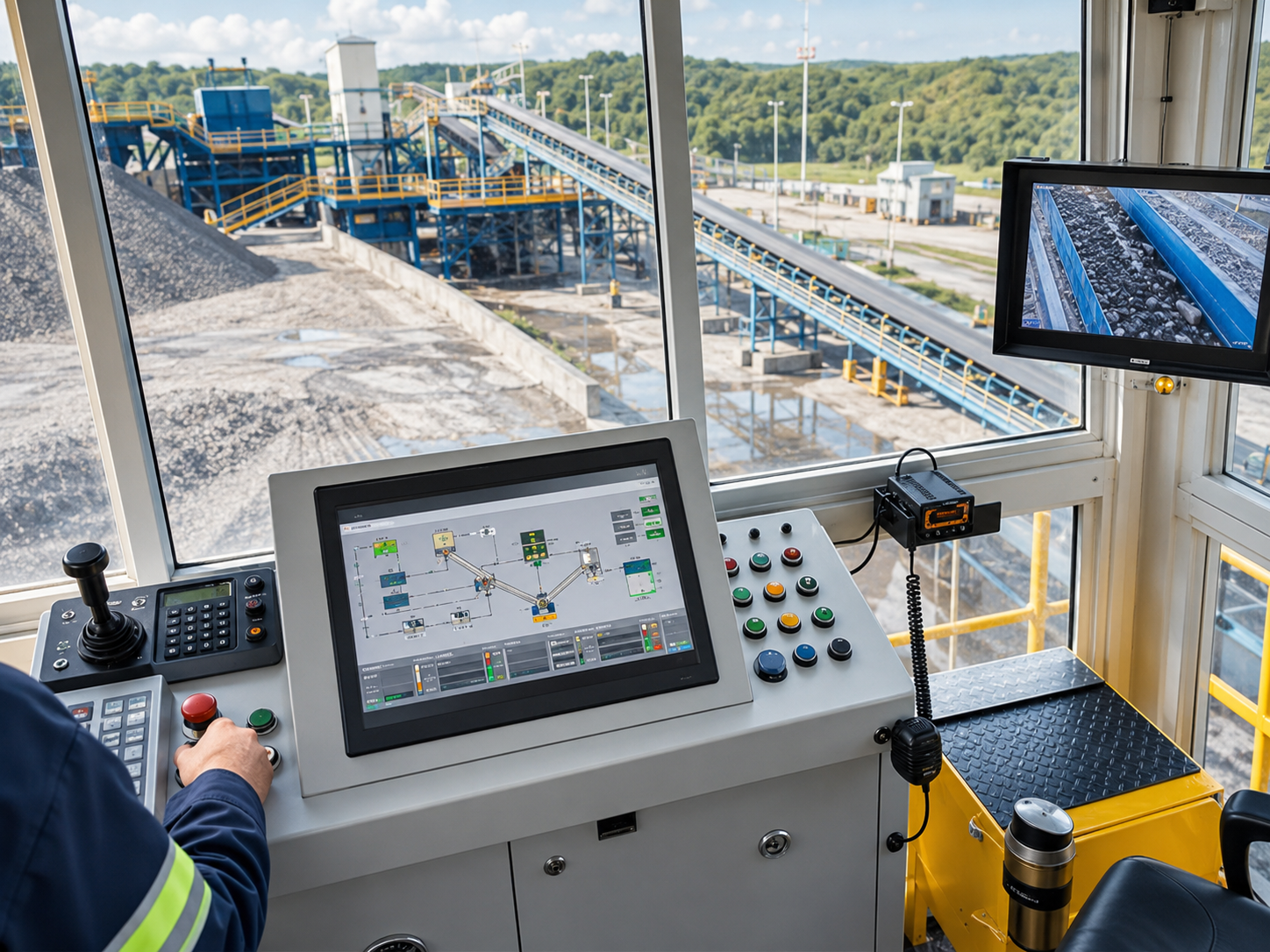

✦Intelligent control system with wireless remote operation for simple and safe handling.

✦Compatible with external power supply or onboard generator set, suitable for various working conditions.

Applications

◆ Crushing of various types of mining rocks.

◆ Recycling and crushing of construction waste, such as building demolition materials and road concrete.

◆ Aggregate crushing for asphalt mixing plants and concrete batching plants.

◆ Crushing applications in coal mines and other industrial sectors.

◆ Suitable for harsh working conditions such as mining operat. ions and open-pit coal mining environments.

Company Profile

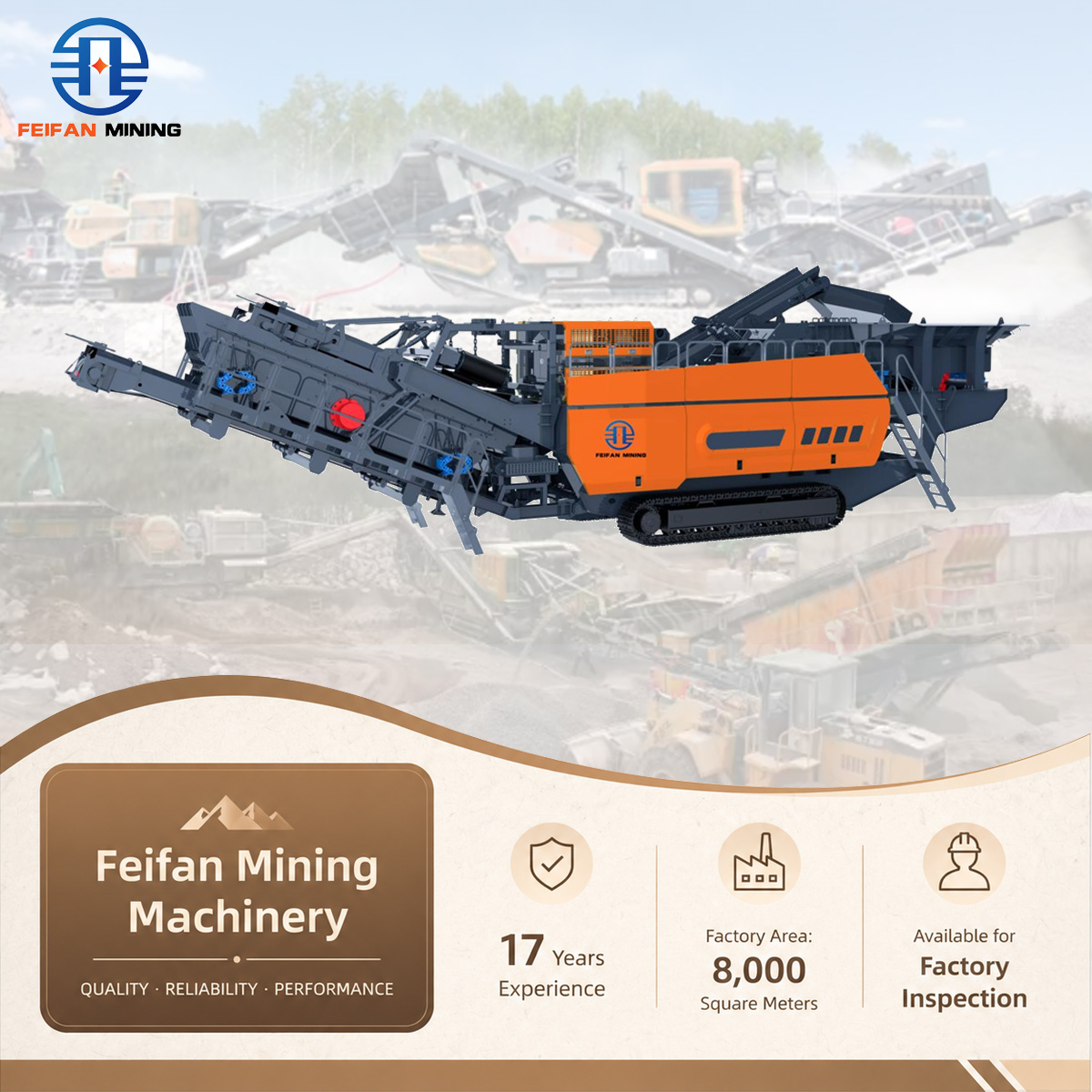

Shandong Feifan Mining Machinery Co., Ltd.

Founded in 2009 in Binzhou, China, we are a one-stop manufacturer of mining and sand & gravel equipment, integrating R&D, production, EPC contracting, and global trade.

With three specialized subsidiaries, 90+ technical staff, and 10+ patents, we offer crushers, vibrating screens, sand making machines, and complete production lines. Our products are exported worldwide, with proven performance in mining, infrastructure, and metallurgy. We provide both standard and customized solutions with reliable after-sales support.

production experence.

Partner Countries

4921

More than 5000 machines sold.

Customer Satisfaction

Solutions

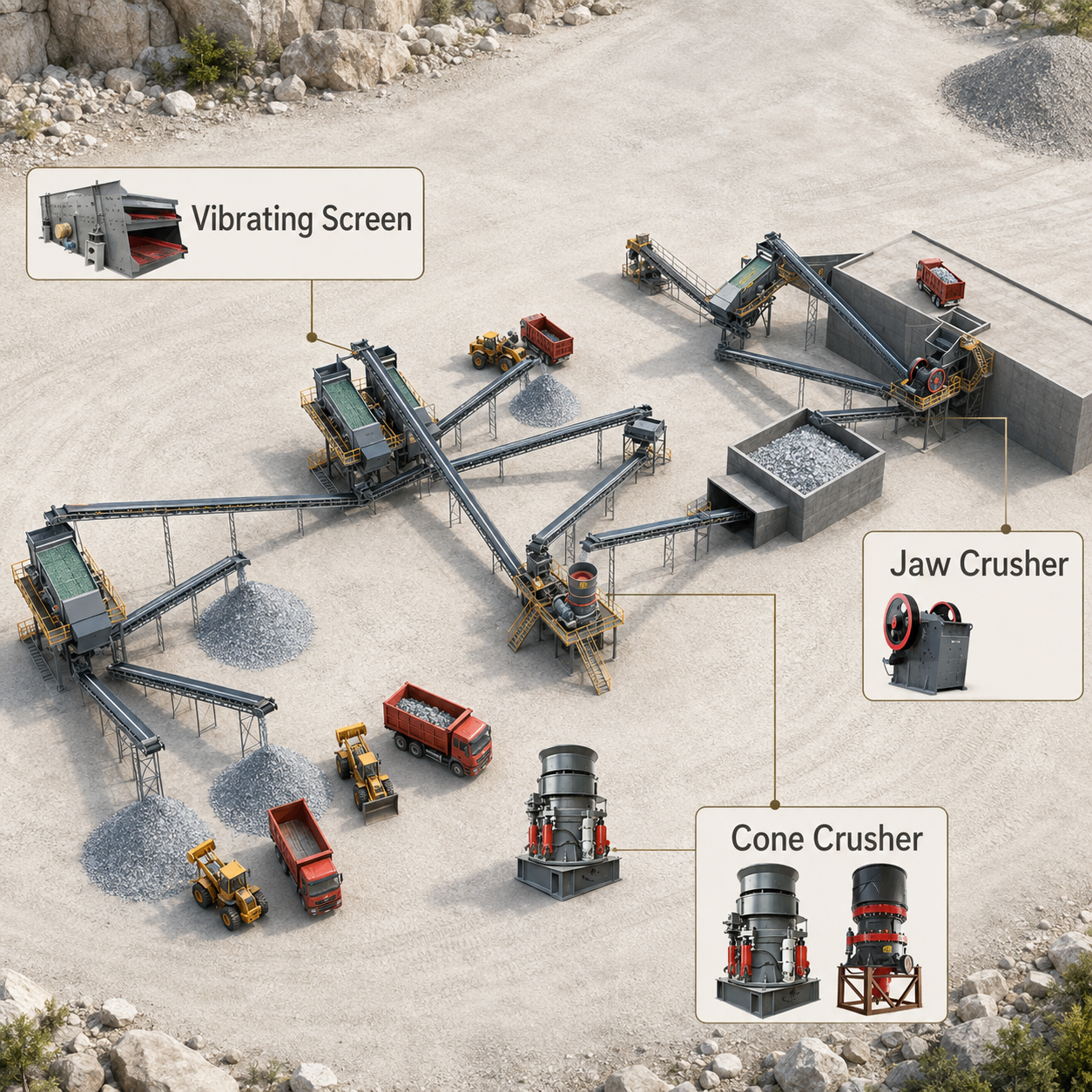

Global EPC mining & aggregate projects, customized one-stop turnkey solutions.

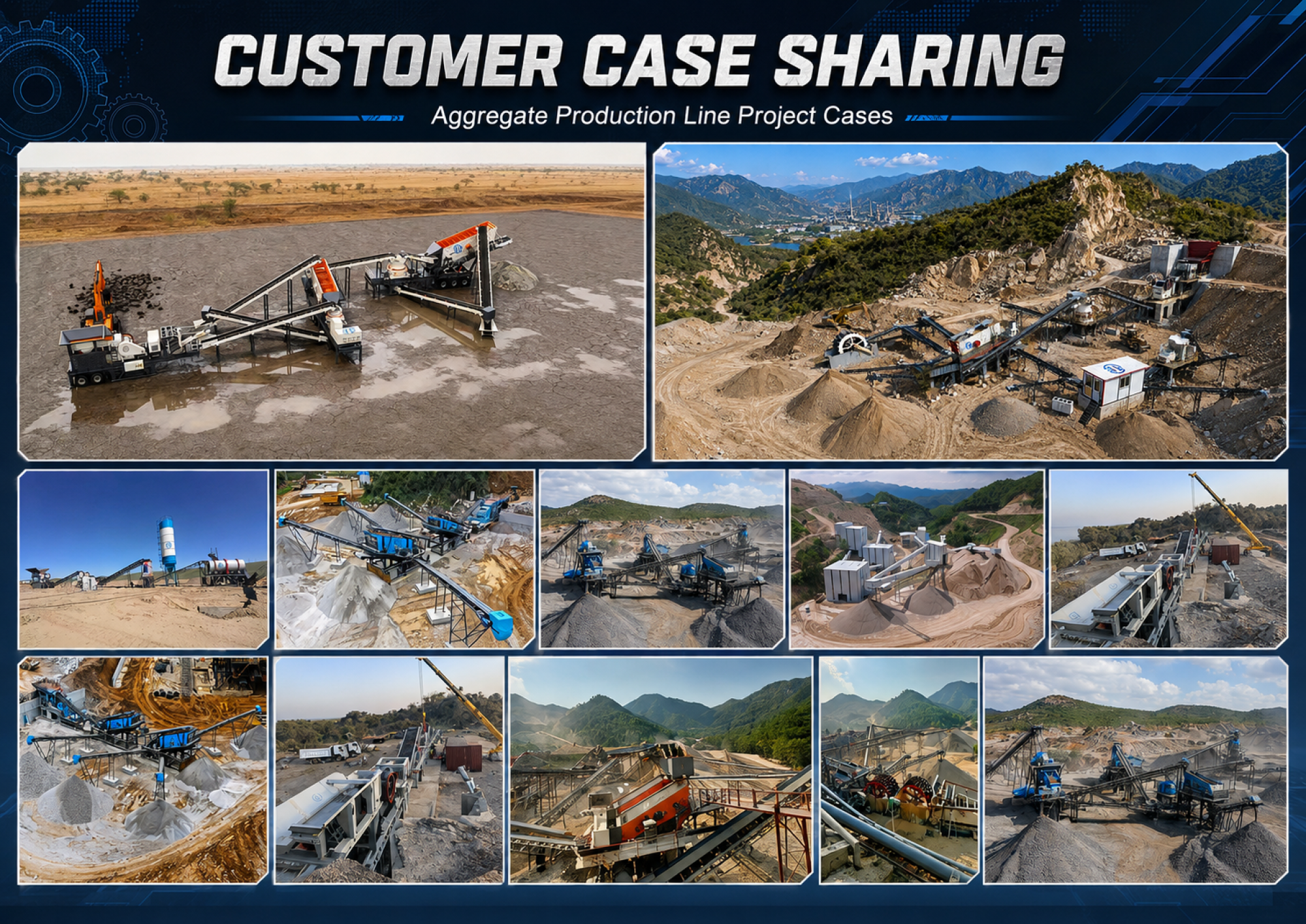

We specialize in turnkey EPC projects for aggregate and mineral processing plants. Our machines are exported globally, with dozens of complete production lines running in Southeast Asia, Central Asia, Africa and South America. Supported by full-range machinery, we offer one-stop services including layout design, equipment production, on-site installation, commissioning and after-sales maintenance to match local working conditions and win lasting trust from worldwide customers.

Exhibition Display

Regularly join global mining expos to connect with buyers and expand global business.
We regularly attend domestic and international exhibitions for mining & aggregate machinery across Central Asia, Southeast Asia, Africa and other regions. We showcase our advanced equipment and turnkey EPC solutions face to face with global buyers, keep up with latest industry technology and expand worldwide business cooperation continuously.





Certificate

All our mining machinery has passed ISO9001 quality management system certification. We are about to obtain MA/KA mining safety certification, CE EU certification and EAC customs union certification. All products undergo strict testing to ensure safe, stable and efficient performance, meeting high-standard requirements for domestic and international mining projects.

Packaging & Transportation

Safe & On-Time Global Delivery; Professional packaging for sea/land/air transport; Full container loading & secure fastening; Door-to-door logistics support to your site.

Small spare parts are packed in wooden cases with waterproof film. Key machine parts are coated with anti-rust oil and wrapped in moisture-proof film; vulnerable accessories are packed separately. Large machines are fixed on steel skids for container or bulk shipment with anti-collision fixation. Land, sea and railway transport are available as requested.

Customer Reviews

Trusted by Customers Around the World;
Zero downtime in continuous production;
High screening efficiency, no clogging with wet materials;
Durable parts & responsive 24/7 after-sales support

After Sales Service

Standard Warranty: 12 months or 2,000 operating hours (whichever comes first).
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.

We have exported mining machinery worldwide for many years. Clients speak highly of our stable machine performance,

competitive factory price and complete after-sales service. Many buyers place repeat orders and recommend our equipment to local partners.
