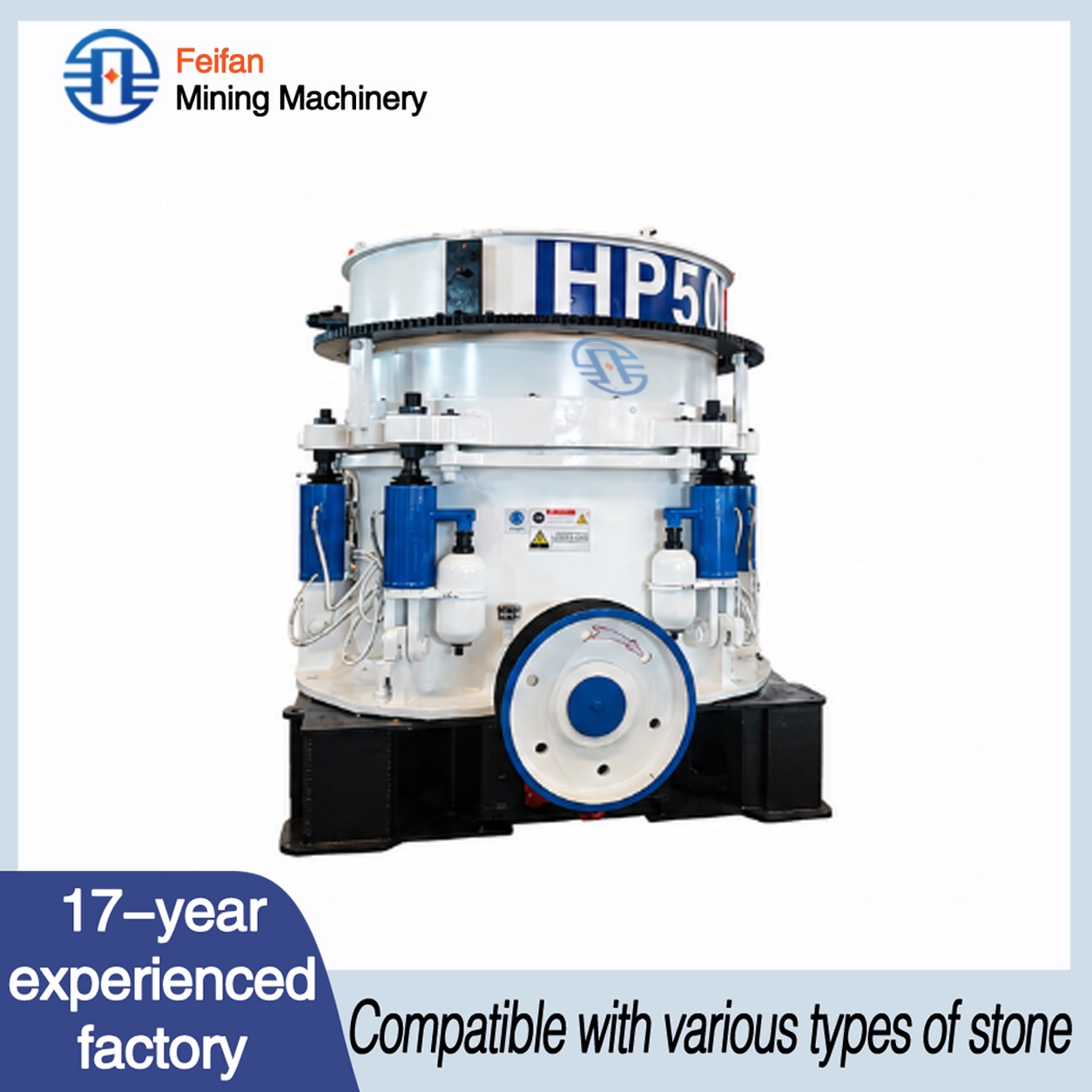

OEM Fast Response Hydraulic Control Cone Crusher Improving Working Efficiency For Crushing Line Crusher

Cone crushers are core secondary and tertiary crushing equipment for modern sand and aggregate production lines and mining operations. Our full lineup covers GP single-cylinder hydraulic, HP multi-cylinder hydraulic, PY spring, Symons and compound cone crushers, engineered to process granite, basalt, limestone and other medium & high-hardness rocks. Adopting laminated crushing principle, these machines deliver steady compression crushing to produce cubical, high-quality aggregates. With flexible cavity designs, adjustable discharge openings and diverse power configurations, they support variable production capacities from 35 t/h up to 1000 t/h. Integrated hydraulic, lubrication and intelligent control systems ensure stable long-term operation, minimizing downtime. They perfectly match stationary and mobile aggregate plants and mining sites, serving as reliable workhorses for graded sand and stone production in construction, road and mining projects.

Tel: +86 13176981712

WhatsApp: +86 13176981712

E-mail: info@tfindustry.com

Products Specifications

Cone Crusher Product Parameter Summary
Product Series	Model	Cavity Type	Feed Opening Size (mm)	Max Feed Size (mm)	Discharge Opening Adjustment Range (mm)	Motor Power (kW)	Processing Capacity (t/h)	Main Unit Weight (t)
GP Series Single Cylinder Cone Crusher	GP100	A	150	≤120	7-37	75-90	35-135	5.8
GP Series Single Cylinder Cone Crusher	GP100	B	130	≤105	7-37	75-90	35-135	5.8
GP Series Single Cylinder Cone Crusher	GP100	C	100	≤85	7-37	75-90	35-135	5.8
GP Series Single Cylinder Cone Crusher	GP200	A	225	≤180	12-45	200-220	85-350	12.7
GP Series Single Cylinder Cone Crusher	GP200	B	150	≤120	12-45	200-220	85-350	12.7
GP Series Single Cylinder Cone Crusher	GP200	C	80	≤60	12-45	200-220	85-350	12.7
GP Series Single Cylinder Cone Crusher	GP300	-	-	250	0-30	220	80-340	-
GP Series Single Cylinder Cone Crusher	GP430	-	-	-	-	160	200-300	-
GP Series Single Cylinder Cone Crusher	GP500	-	-	-	45	315/355	300-350 (Stroke 18mm)	-
GP Series Single Cylinder Cone Crusher	GP500	-	-	-	50	315/355	500-550 (Stroke 25mm)	-
GP Series Single Cylinder Cone Crusher	GP660	-	-	-	-	315	400-600	-
GP Series Single Cylinder Cone Crusher	GP870	-	-	-	-	500	600-800	-
Symons Series Cone Crusher	4.25FT	Standard	105	≤85	10-38	132	45-135	14.5
Symons Series Cone Crusher	4.25FT	Short Head	50	≤40	3-16	132	18-105	14.5
Symons Series Cone Crusher	5.5FT	Standard	130	≤105	13-51	160	90-230	22.5
Symons Series Cone Crusher	5.5FT	Short Head	80	≤65	5-25	160	35-180	22.5
Symons Series Cone Crusher	7FT	Standard	175	≤140	16-64	250	140-350	40.8
Symons Series Cone Crusher	7FT	Short Head	100	≤80	6-32	250	50-280	40.8
Symons Series Cone Crusher	10FT	Standard	275	≤220	25-102	400	340-700	70.5
Symons Series Cone Crusher	10FT	Short Head	150	≤120	10-51	400	120-560	70.5
Compound Cone Crusher	CC100	-	150	≤120	6-36	75	30-120	5.5
Compound Cone Crusher	CC200	-	225	≤180	10-40	200	80-320	12.5
Compound Cone Crusher	CC300	-	250	≤200	15-50	220	120-400	18.5
Compound Cone Crusher	CC400	-	350	≤280	20-60	315	200-500	28.5
Compound Cone Crusher	CC500	-	400	≤320	25-70	400	300-600	38.5
Multi Cylinder Series Cone Crusher	HP100	A/B/C	150/130/100	≤120/≤105/≤85	7-37	75-90	35-135	5.8
Multi Cylinder Series Cone Crusher	HP200	A/B/C	225/150/80	≤180/≤120/≤60	12-45	200-220	85-350	12.7
Multi Cylinder Series Cone Crusher	HP300	A/B/C	250/200/150	≤200/≤160/≤120	15-50	220-250	120-400	18.5
Multi Cylinder Series Cone Crusher	HP400	A/B/C	350/300/250	≤280/≤240/≤200	20-60	315-400	200-500	28.5
Multi Cylinder Series Cone Crusher	HP500	A/B/C	400/350/300	≤320/≤280/≤240	25-70	400-500	300-600	38.5
PY Series Cone Crusher	PYB600	-	75	≤60	12-25	30	10-40	4.8
PY Series Cone Crusher	PYZ600	-	40	≤30	3-13	30	5-20	4.8
PY Series Cone Crusher	PYD600	-	40	≤30	3-13	30	5-20	4.8
PY Series Cone Crusher	PYB900	-	115	≤90	15-50	55	20-65	11.2
PY Series Cone Crusher	PYZ900	-	60	≤50	5-20	55	10-40	11.2
PY Series Cone Crusher	PYD900	-	60	≤50	5-20	55	10-40	11.2
PY Series Cone Crusher	PYB1200	-	145	≤115	20-60	110	40-110	24.7
PY Series Cone Crusher	PYZ1200	-	100	≤80	8-25	110	18-68	24.7
PY Series Cone Crusher	PYD1200	-	100	≤80	8-25	110	18-68	24.7
PY Series Cone Crusher	PYB1750	-	215	≤170	25-60	160	50-130	50.3
PY Series Cone Crusher	PYZ1750	-	185	≤150	10-30	160	25-105	50.3
PY Series Cone Crusher	PYD1750	-	185	≤150	10-30	160	25-105	50.3
PY Series Cone Crusher	PYB2200	-	275	≤230	30-60	280-315	100-200	80.5
PY Series Cone Crusher	PYZ2200	-	230	≤190	15-35	280-315	50-160	80.5
PY Series Cone Crusher	PYD2200	-	230	≤190	15-35	280-315	50-160	80.5

Cone Crusher Core Advantages

◆Superior Crushing Performance: Laminated crushing reduces flaky particles, producing uniform cubical aggregates that meet strict construction standards; large crushing ratio and high throughput boost overall line efficiency.

◆Reliable Protection System: Hydraulic or spring overload protection prevents damage from uncrushable materials; automatic cavity clearing solves blockage issues quickly.

◆Cost-Effective Operation: High-strength manganese steel wear parts extend service life; optimized structure lowers energy consumption and routine maintenance costs.

◆High Flexibility: Multiple cavity types (A/B/C/D etc.) and adjustable strokes cater to coarse, medium and fine crushing demands.

◆Smart Control: Optional automatic control enables real-time parameter monitoring, remote adjustment and fault diagnosis for easier operation.

Application & Suitable Scenarios

Application Fields
◆Aggregate processing, mining industry, quarrying, road & highway construction, railway engineering, concrete batching plant, water conservancy projects and rock material recycling.

Suitable Scenarios

◆Secondary & tertiary crushing in full-scale sand and aggregate production lines and mining sites.

◆Coarse, medium and fine crushing of hard and abrasive natural rocks.

◆Large-scale mines and high-output aggregate plants (HP multi-cylinder series).

◆Medium-sized production lines with low maintenance requirements (GP single-cylinder series).

◆Budget-friendly projects with stable working conditions (PY spring & Symons series).

◆Fixed crushing stations and mobile crushing plants for field operation.

Key Configurations

◆Main Structure: Upper frame, lower frame, moving cone, fixed cone, eccentric sleeve and main shaft, made of high-rigidity cast steel.

◆Drive System: Standard industrial motor + belt transmission, power range: 75KW – 500KW for different models.
◆Hydraulic System: Single-cylinder / multi-cylinder hydraulic unit for discharge opening adjustment and overload relief.
◆Lubrication System: Centralized circulating lubrication to protect bearings and moving parts.
◆Wear Parts: Mantle and bowl liner made of 14Mn/18Mn manganese steel for strong abrasion resistance.
◆Optional Module: Intelligent PLC control system and on-line monitoring unit.
◆Customization Service: Customized configuration is available according to actual production requirements and on-site working conditions.

Company Profile

Shandong Feifan Mining Machinery Co., Ltd.

Founded in 2009 in Binzhou, China, we are a one-stop manufacturer of mining and sand & gravel equipment, integrating R&D, production, EPC contracting, and global trade.

With three specialized subsidiaries, 90+ technical staff, and 10+ patents, we offer crushers, vibrating screens, sand making machines, and complete production lines. Our products are exported worldwide, with proven performance in mining, infrastructure, and metallurgy. We provide both standard and customized solutions with reliable after-sales support.

production experence.

Partner Countries

4921

More than 5000 machines sold.

Customer Satisfaction

Solutions

Global EPC mining & aggregate projects, customized one-stop turnkey solutions.

We specialize in turnkey EPC projects for aggregate and mineral processing plants. Our machines are exported globally, with dozens of complete production lines running in Southeast Asia, Central Asia, Africa and South America. Supported by full-range machinery, we offer one-stop services including layout design, equipment production, on-site installation, commissioning and after-sales maintenance to match local working conditions and win lasting trust from worldwide customers.

Exhibition Display

Regularly join global mining expos to connect with buyers and expand global business.
We regularly attend domestic and international exhibitions for mining & aggregate machinery across Central Asia, Southeast Asia, Africa and other regions. We showcase our advanced equipment and turnkey EPC solutions face to face with global buyers, keep up with latest industry technology and expand worldwide business cooperation continuously.





Certificate

All our mining machinery has passed ISO9001 quality management system certification. We are about to obtain MA/KA mining safety certification, CE EU certification and EAC customs union certification. All products undergo strict testing to ensure safe, stable and efficient performance, meeting high-standard requirements for domestic and international mining projects.

Packaging & Transportation

Safe & On-Time Global Delivery; Professional packaging for sea/land/air transport; Full container loading & secure fastening; Door-to-door logistics support to your site.

Small spare parts are packed in wooden cases with waterproof film. Key machine parts are coated with anti-rust oil and wrapped in moisture-proof film; vulnerable accessories are packed separately. Large machines are fixed on steel skids for container or bulk shipment with anti-collision fixation. Land, sea and railway transport are available as requested.

Customer Reviews

Trusted by Customers Around the World;
Zero downtime in continuous production;
High screening efficiency, no clogging with wet materials;
Durable parts & responsive 24/7 after-sales support

After Sales Service

Standard Warranty: 12 months or 2,000 operating hours (whichever comes first).
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.

We have exported mining machinery worldwide for many years. Clients speak highly of our stable machine performance,

competitive factory price and complete after-sales service. Many buyers place repeat orders and recommend our equipment to local partners.
